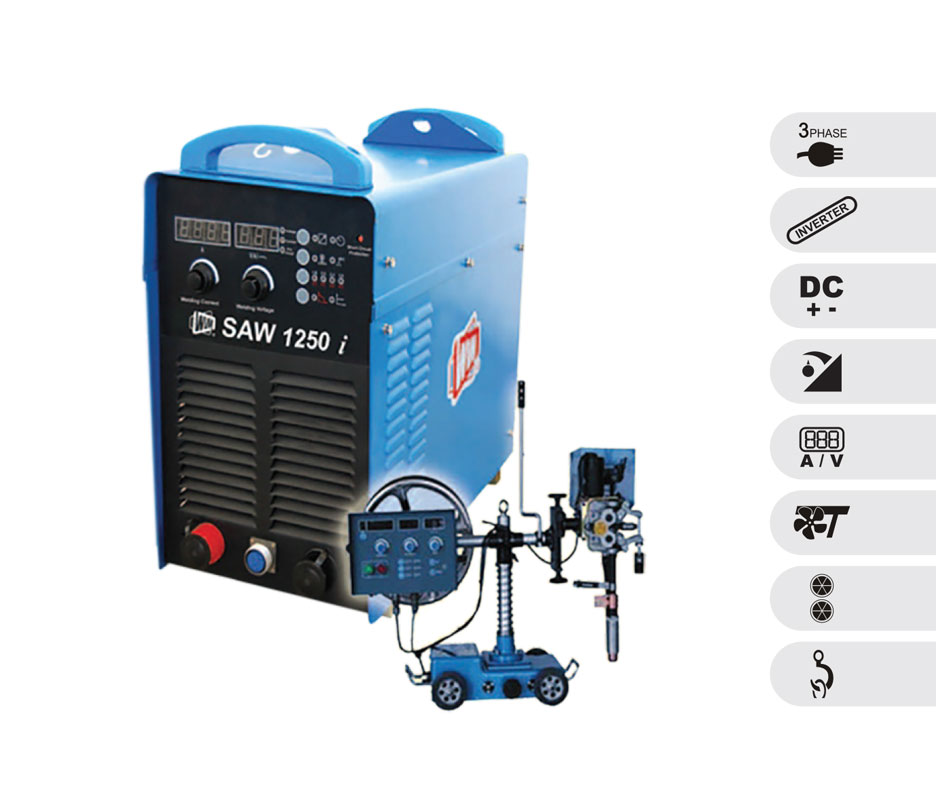

SUBMERGED ARC INVERTER

Saw Range Heavy Industrial - Models: SAW 1250I

SPECIFICATION

Technical Specifications  SAW 1250 DC
Input Voltage (V)  415
Frequency (Hz)  50/60
Rated Input Capacity (KVA)  93
No Load Voltage (V)  72
Welding Current Range (A)  200 - 1250
Duty Cycle (%)  60
Welding Wire Usable (mm) 02-Jun
Insulation Class  H
Dimension - Power Unit (mm)  1000 x 610 x 880
Weight - Power Unit (Kgs.)  420

FEATURES

  • Latest Inverter Technology
  • High speed welding on thin sheets
  • Less Distortion
  • Minimum Spatter
  • Programmable Controller

SUITABLE FOR

  • Steel
  • Stainless Steel
