MULTI PROCESS INVERTERS

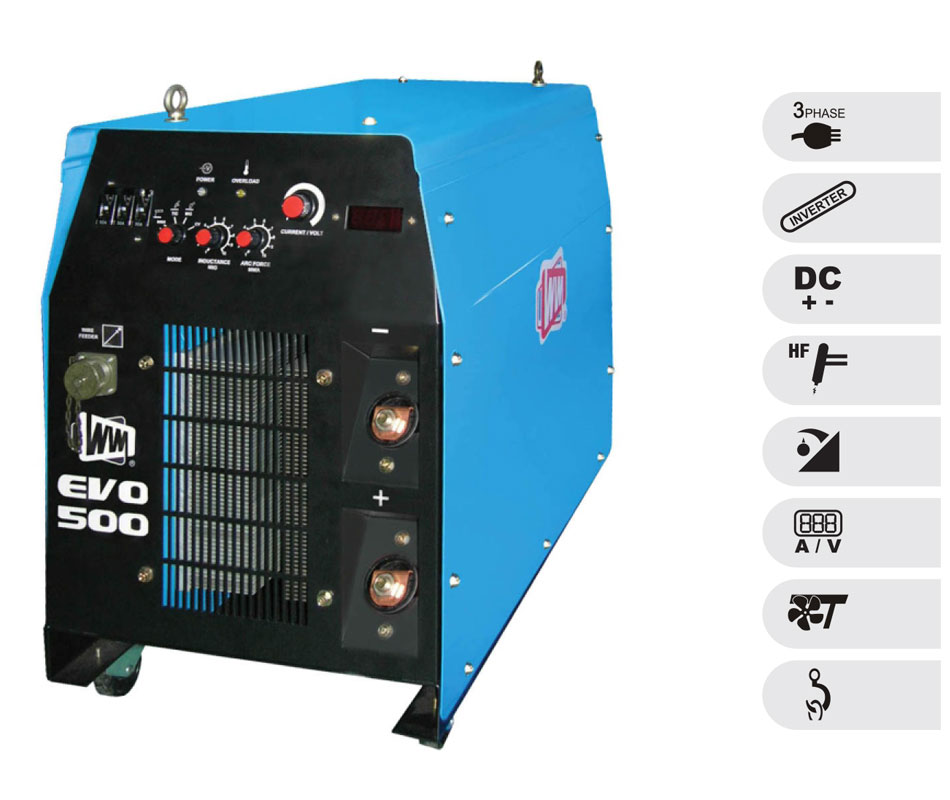

MULTI PROCESS INVERTERSEVO Range Heavy Industrial - Models: EVO 400/500
SPECIFICATION
| Technical Characteristics | EVO 400 (C) | EVO 500 (CC CV) |
| Input Voltage (V) | 380/415 | 380 / 415 |
| Input Current (Amps. / KvA) | 30 | 24.5 KvA |
| Frequency (Hz) | 50/60 | 50/60 |
| Welding Current - CC (Amps.) | 10 - 400 | 5 - 500 |
| Max OCV (CC) | NA | 75 |
| Duty Cycle % | 60 | 70 |
| Efficiency % | 90 | 90 |
| Power Factor | 0.96 | 0.96 |
| Insulation Class | B | B |
| Cover Protection Class | IP21S | IP21S |

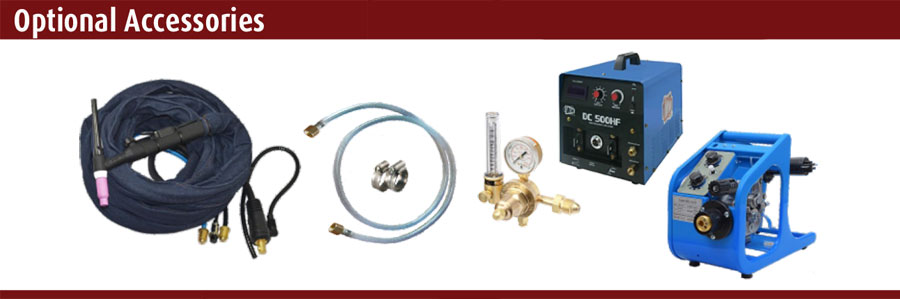

| Optional Attachment For TIG | High Frequency Unit | High Frequency Unit |
| Optional Attachment For MIG | MIG Wire Feeder | MIG Wire Feeder |
| Optional Attachment For MIG & TIG | Water Cooler for Torch | Water Cooler for Torch |
| Weight (Kgs.) | 42 | 70 |
| Dimensions W x L x H (mm) | 570 x 290 x 520 | 385 x 630 x 545 |
FEATURES
- Latest Inverter Technology
- Constant Current & Voltage
- Smooth & Spatter less Weld
- Heavy Duty & Rugged
- Multi process application
WELDS
- Steel
- Stainless Steel
- Cast Iron
