MULTI OPERATOR INVERTER

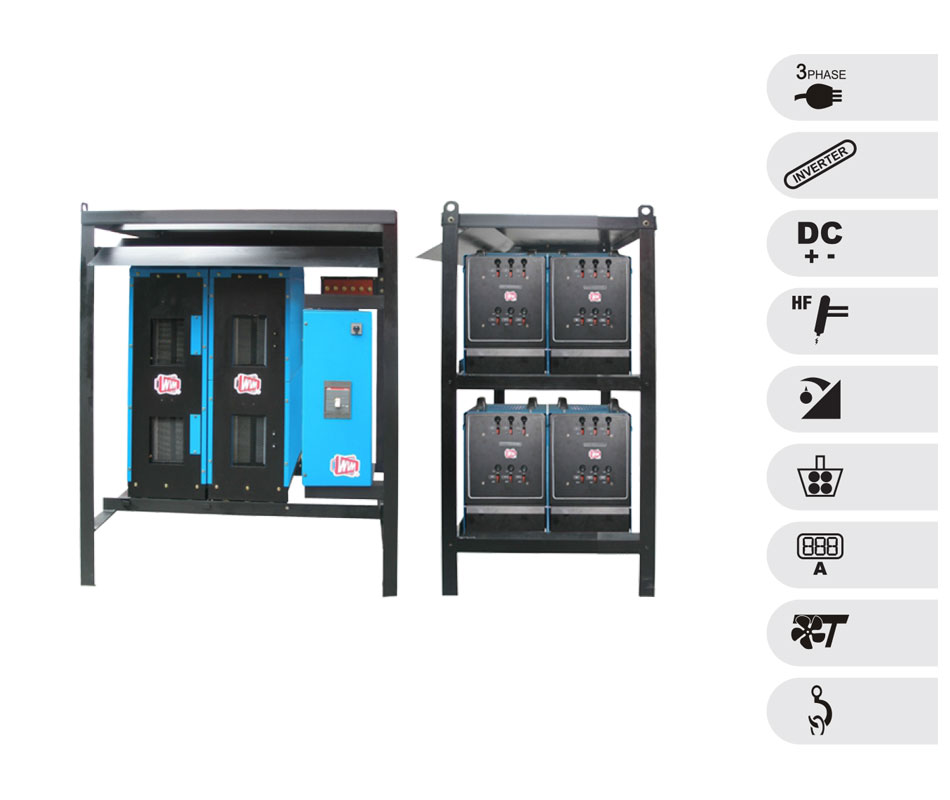

MULTI OPERATOR INVERTERWeld Plus Range Heavy Industrial - Models: WP 1600/2400/3000
SPECIFICATION
| Techncial Specifications | Weld Plus 1600 | Weld Plus 2400 | Weld Plus 3000 |
| Master Power Source | 1 | 1 | 1 |
| Welding Power Source | 4 | 6 | 6 |
| Max. No. Of Operators | 4 | 6 | 6 |
| Rated Input (kva) | 80 | 160 | 180 |
| Power Factor | 0.92 | 0.92 | 0.92 |
| Rated Output Current (A) | 1600 | 2400 | 3000 |
| Weight (Kgs.) | 880 | 1770 | 2300 |
| Width (mm) | 1000 | 1250 | 1500 |
| Length (mm) | 3050 | 3050 | 3050 |
| Height (mm) | 2175 | 2175 | 2175 |
| Duty Cycle (%) | 60 | 60 | 60 |
| Process | SMAW / GMAW / FCAW / GTAW / CAC-A | ||
FEATURES
- Heavy Duty DC Power Source
- Multiple Welding process option
- Latest Inverter Technology
- Constant Current and Voltage
- Generator Compatible
- Suitable for ARC, MIG & TIG Welding
WELDS
- Steel
- Stainless Steel
- Aluminium
- Copper
- Brass
- Titanium
- Casting
