MIG/MAG (GMAW) - THYRISTOR

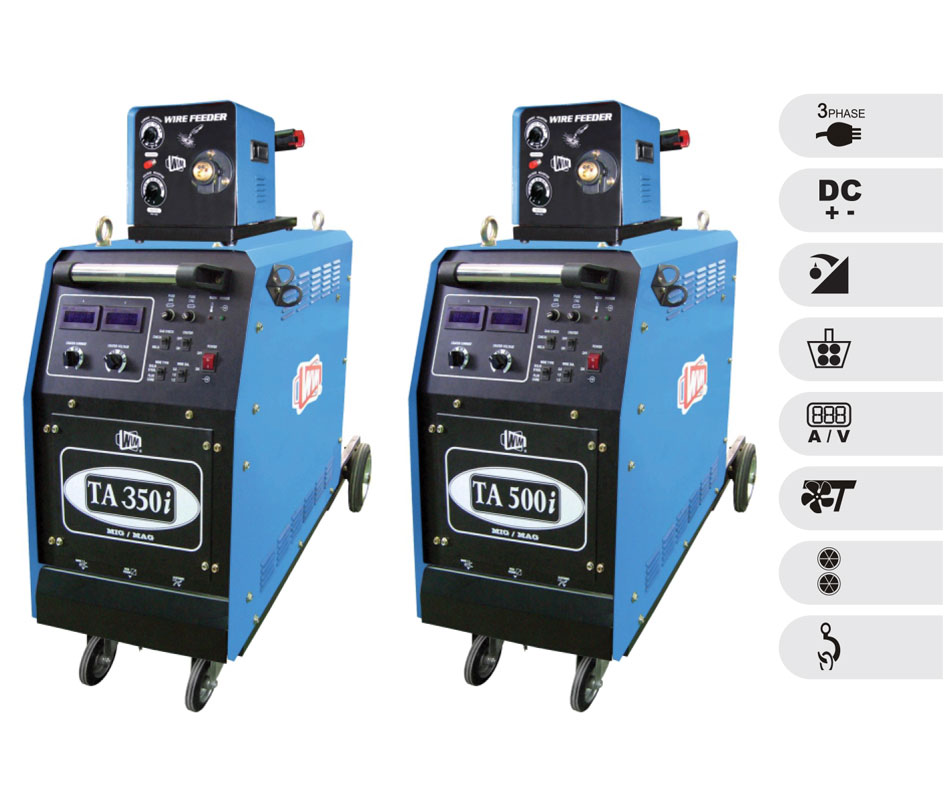

MIG/MAG TA Range Heavy Industrial - Models: TA 351I/501I

SPECIFICATION

Techncial Specifications TA 351I TA 501I
Input Voltage (V) 415 415
Frequency (Hz) 50/60 50/60
Rated Input Current (KVA) 18.1 21.9
Output Current (A) 75 - 350 80 - 500
No Load Voltage (V) 53 64
Output Voltage (V) 17.8 - 31.5 18 - 39
Rated Duty Cycle (%) 60 60
Insulation Class H H
Protection Class IP 21S IP21S
Dimensions (mm) 540 x 1005 x 890 540 x 1005 x 890
Weight (Kgs.) 139 178

FEATURES

  • Thyristor Controlled
  • Suitable for thin sheet welding
  • Easy to operate and maintain
  • Suitable for continuous operation
  • High Speed Welding
  • Less spatter and controlled welding
  • Recommended for Automation

WELDS

  • Steel
  • Stainless Steel
  • Aluminium
