MIG/MAG (GMAW) TAPPING SWITCH

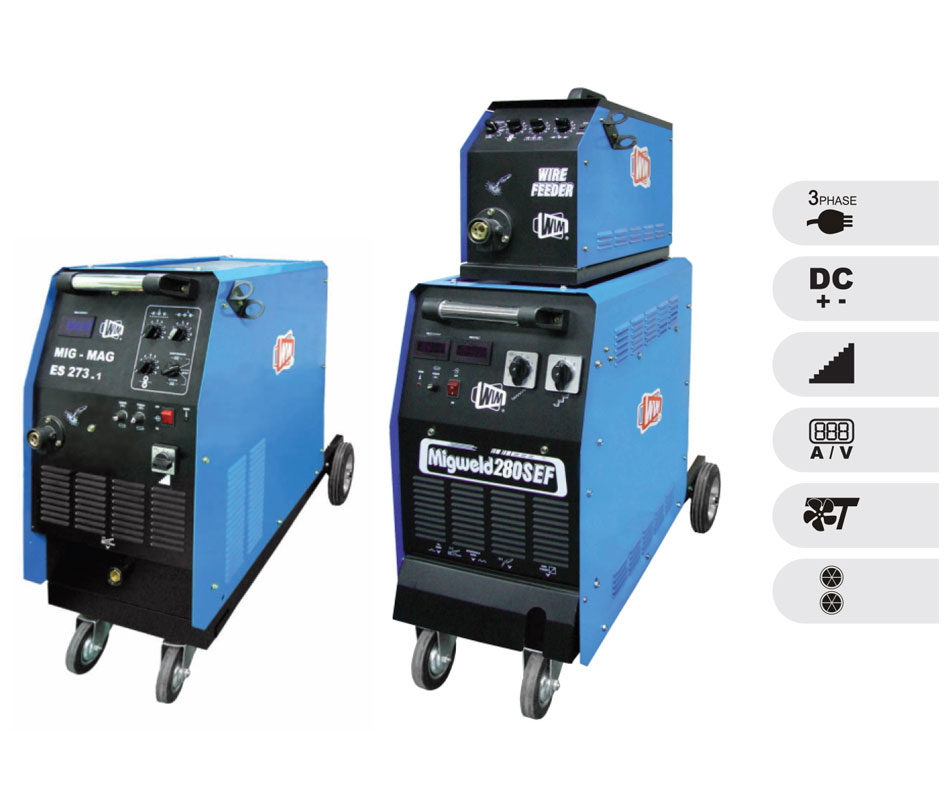

MIG/MAG (GMAW) TAPPING SWITCHMIG/MAG Diode Range Heavy Industrial - Models: ES 273/280S/280SEF
SPECIFICATION
| Techncial Characteristics | ES 273 | 280 S | 280 SEF |
| Input Voltage (V) | 380 / 415 | 380 / 415 | 380 / 415 |
| Input Current (Amps.) | 14.1 | 24 | 24 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Output Rating | 240 A / 26 V | 280 A / 28 V | 280 A / 28 V |
| Output Control | 10 Step - Tapping | 4 x 8 Step - Tapping | 4 x 8 Step - Tapping |
| Welding Range (Amps.) | 30 - 240 | 40 - 280 | 40 - 280 |
| Filler Wire Range (mm) | 0.8 - 1.2 | 0.6 - 1.2 | 0.6 - 1.2 |
| Wire Feeding Range ( Mt./ Min.) | Jan-20 | Jan-20 | Jan-20 |
| Time (Spot / Stitch) Sec. | NA | 0 - 5 | 0 - 5 |
| Duty Cycle % | 60 | 60 | 60 |
| Degree of Protection | IPS21 | IPS21 | IPS21 |
| Insulation Class | H (180C) | H (180C) | H (180C) |
| Weight (Kgs.) | 97 | 137 | 137 |
| Dimensions W x L x H (mm) | 510 x 950 x 838 | 515 x 940 x 820 | 515 x 940 x 820 |
FEATURES
- Easy to operate and maintain
- Suitable for continuous operation
- High Speed Welding
- Less spatter and controlled welding
- Internal built-in closed Wire Feeder
- External Closed Wire Feeder (280SEF)
WELDS
- Steel
- Stainless Steel
- Aluminium
