MIG/MAG (GMAW) - TAPPING SWITCH

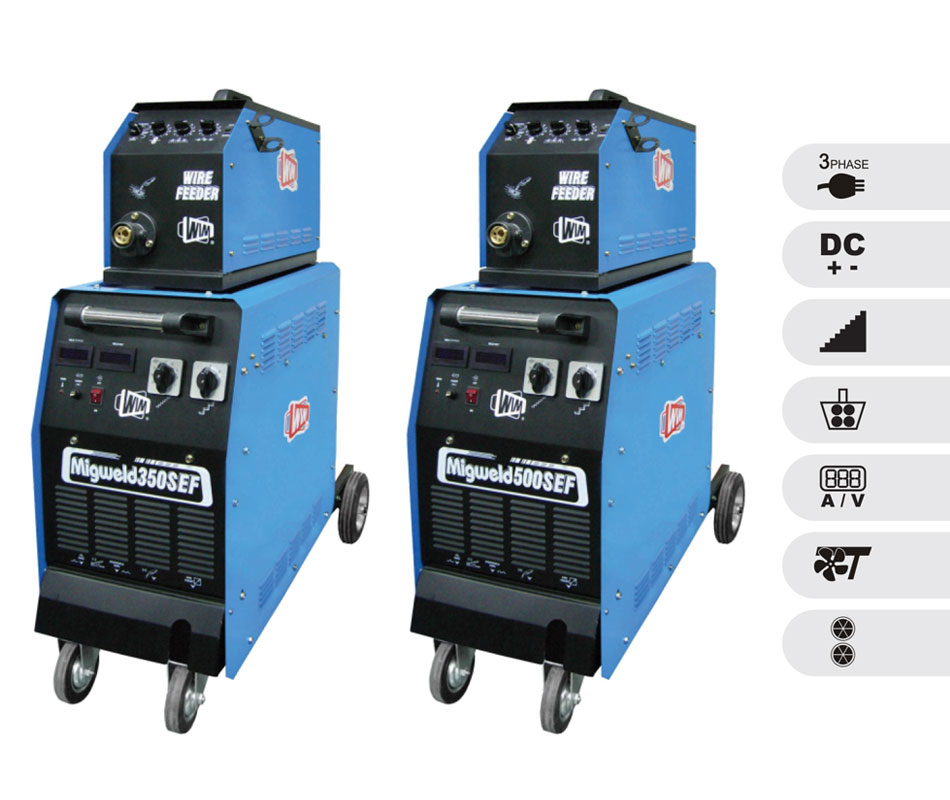

MIG/MAG (GMAW) - TAPPING SWITCHMIG/MAG Diode Range Heavy Industrial - Models: 350SEF/500SEF
SPECIFICATION
| Techncial Characteristics | 350 SEF | 500 SEF |
| Input Voltage (V) | 380 / 415 | 380 / 415 |
| Input Current (Amps.) | 26 | 38 |
| Frequency (Hz) | 50/60 | 50/60 |
| Output Rating | 350 A / 32 V | 500 A / 39 V |
| Output Control | 2 x 12 Step - Tapping | 2 x 12 Step - Tapping |
| Welding Range (Amps.) | 40 - 350 | 45 - 500 |
| Filler Wire Range (mm) | 0.8 - 1.2 & FC | 0.8 - 1.6 & FC |
| Wire Feeding Range ( Mt./ Min.) | Jan-20 | Jan-20 |
| Time (Spot / Stitch) Sec. | 0 - 5 | 0 - 5 |
| Duty Cycle % | 60 | 60 |
| Degree of Protection | IPS21 | IPS21 |
| Insulation Class | H (180C) | H |
| Weight (Kgs.) | 126.5 | 170 |
| Dimensions W x L x H (mm) | 373 x 980 x 820 | 515 x 940 x 820 |
FEATURES
- Easy to operate and maintain
- Suitable for continuous operation
- High Speed Welding
- Less spatter and controlled welding
- External closed Wire Feeder
WELDS
- Steel
- Stainless Steel
- Aluminium
