DIESEL ENGINE WELDER

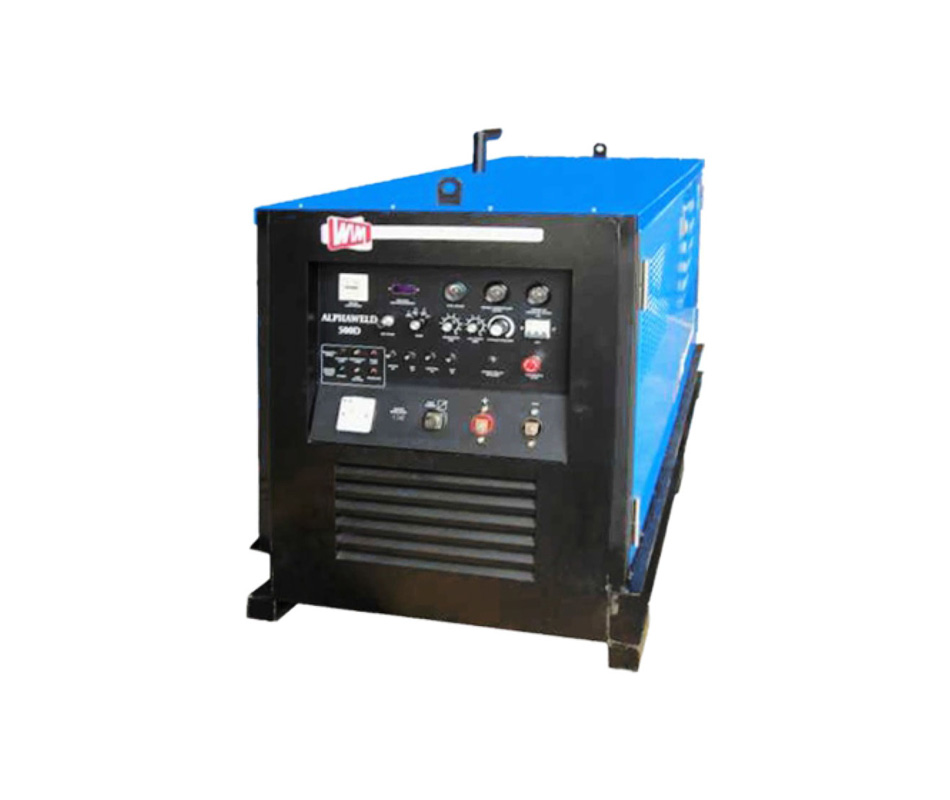

DIESEL ENGINE WELDERDEW Range Heavy Industrial - Models: ALPHA 500D
SPECIFICATION
| Techncial Specifications | ALPHA 500D |
| Rated Output Current (A) | 500 |
| Output Voltage (V) | 40 |
| Duty Cycle (%) | 50 |
| Welding Current Range (A) | 5 - 500 CC |
| Output Voltage Range (V) | 15 - 48 CV |
| Engine Type | Deutz F3L - 912 Diesel |
| Generator Output (KVA) | 30-Jan |
| Horsepower & Speed (RPM) | 44 @ 1800 |
| Dimension Power Unit (mm) | 1380 x 860 x 1710 |
| Weight Power Unit (Kgs.) | 910 |
FEATURES
- Heavy Duty & Rugged
- Highly reliable
- Superior ARC performance
- Minimum Spatter
- Programmable Controller
WELDS
- Steel
- Stainless Steel
- Aluminium
- Copper
- Brass
- Titanium
- Cast Iron
