ARC (MMA) RECTIFIERS

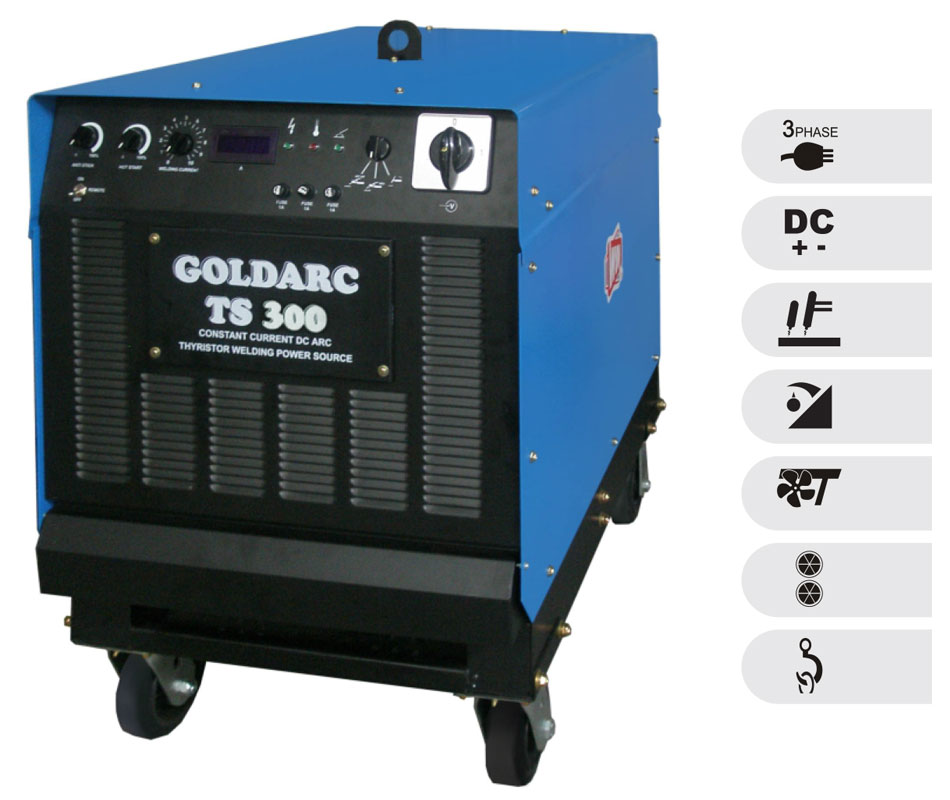

ARC (MMA) RECTIFIERSTS Range Heavy Industrial - Model: TS 300/400/600
SPECIFICATION
| Technical Characteristics | TS 300 | TS 400 | TS 600 |
| Input Voltage (V) | 380 / 415 | 380 / 415 | 380 / 415 |
| Input Current (Amps.) | 32 | 45 | 65 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Welding Current (Amps.) | 30 - 300 | 40 - 400 | 50 - 600 |
| Open Circuit Voltage (V) | 75 | 76 | 75 |
| Duty Cycle % | 60 | 60 | 60 |
| Weight (Kgs.) | 147 | 164 | 210 |
| Dimensions W x L x H (mm) | 490 x 300 x 600 | 425 x 340 x 540 | 430 x 700 x 580 |
FEATURES
- Heavy duty and rugged
- All weather design
- fan cooled Thermal protection
- Smooth & Low spatter welder
- Suitable for all types of electrodes
- TS 600: Ideally suited for Gouging Application
WELDS
- Mild Steel
- Stainless Steel
- Aluminium
- Cast Iron
