ARC (MMA) TRANSFORMERS

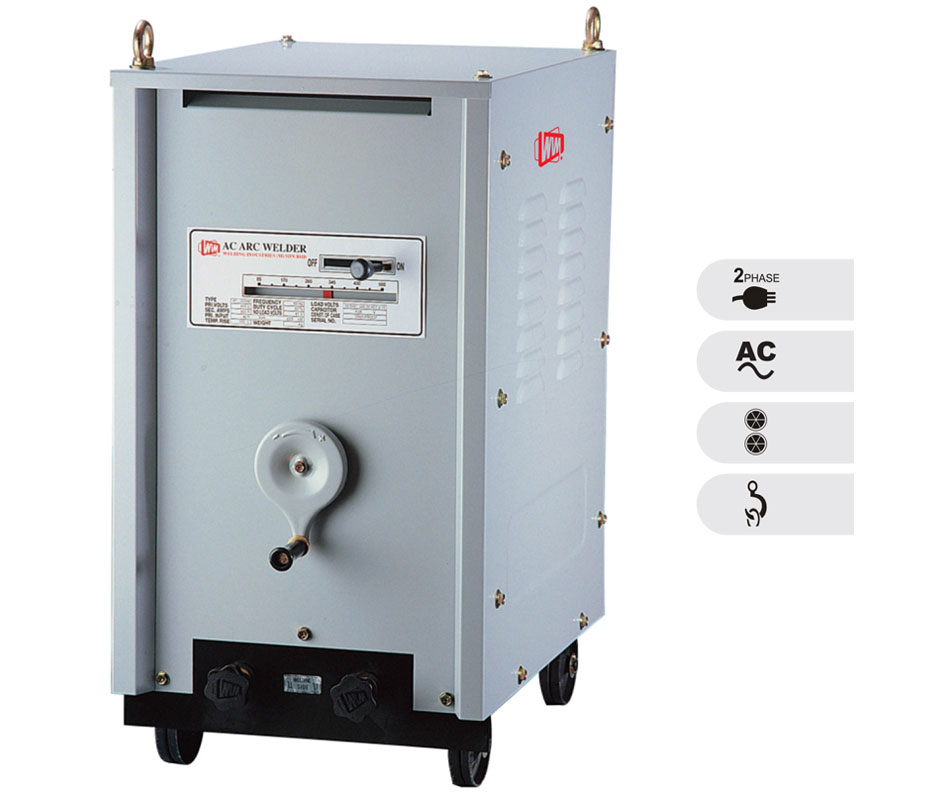

ARC (MMA) TRANSFORMERSAC Range Heavy Industrial - Model: AC 200A/300A/400A/500A
SPECIFICATION
| Technical Characteristics | AC 200A | AC 300A | AC 400A | AC 500A |
| Input Voltage (V) | 220 / 415 | 415 | 415 | 415 |
| Input Current (Amps.) | 30 | 60 | 76 | 100 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Welding Current (Amps.) | 55 - 200 | 55 - 300 | 55 - 400 | 55 - 500 |
| Open Circuit Voltage (V) | 62 | 76 | 76 | 79.4 |
| Duty Cycle % | 40 | 40 | 40 | 60 |
| Weight (Kgs.) | 73 | 95 | 140 | 185 |
| Dimensions W x L x H (mm) | 490 x 300 x 600 | 425 x 340 x 540 | 430 x 700 x 580 | 451 x 627 x 892 |
FEATURES
- Heavy duty and rugged
- Smooth adjustment of welding current
- Natural Cooling
- Non Water penetrate design
WELDS
- Steel
- Stainless Steel
- Cast Iron
