TIG/MMA (GTAW) INVERTER

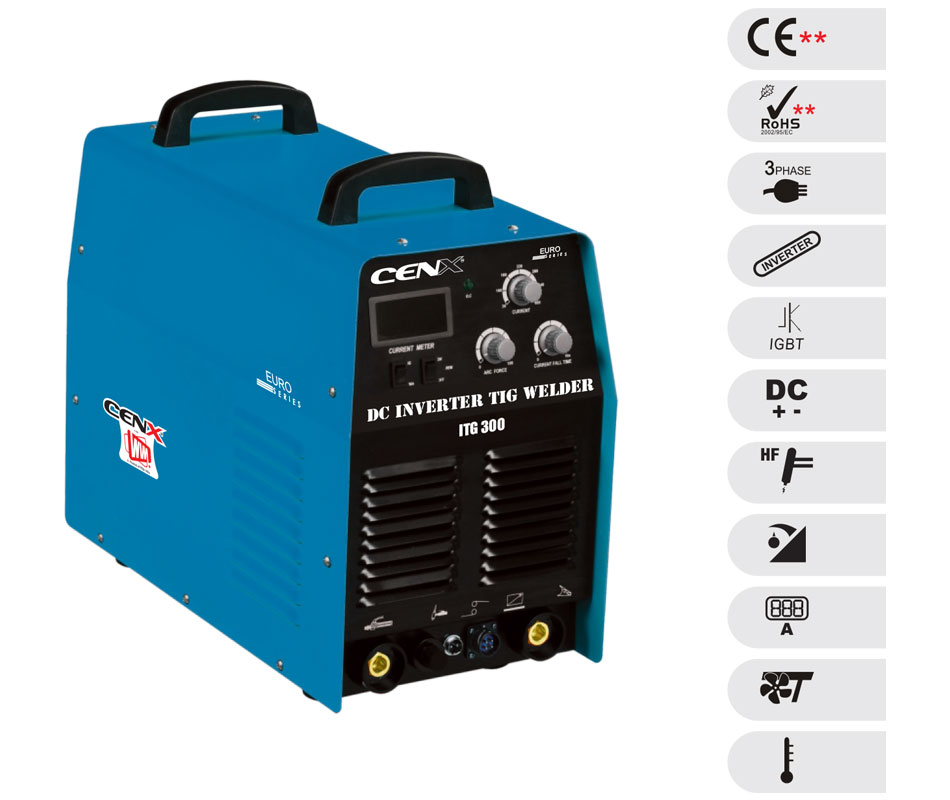

TIG/MMA (GTAW) INVERTERITG Range Heavy Industrial - Model: ITG 300/400
SPECIFICATION
| Technical Specifications | ITG 300 | ITG 400 |
| Input Voltage (V) | 415 +/- 15% | 415 +/- 15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Rated Input Current (KvA) | 9.8 | 14.3 |
| Output Voltage (V) | 22 | 26 |
| Output Current Range (A) | 10 - 300 | 15 - 400 |
| No Load Voltage (V) | 60 | 60 |
| Duty Cycle (%) | 60 | 60 |
| Efficiency (%) | 95 | 95 |
| Power Factor | 0.9 | 0.9 |
| Insulation Class | H | H |
| Protection Class | IP21 | IP21 |
| Weight (Kgs.) | 28 | 28 |
| Dimension (mm) | 630 x 370 x 550 | 630 x 370 x 550 |
| Usable Electrode - MS 6013 - (mm) | 4 | 5 |
| Product Reference | TIG315C | TIG400C |
FEATURES
- Advanced Inverter Technology
- Inbuilt High Frequency (HF)
- Compact Size
- Easy to handle
- Stable and reliable welding current
- Low energy consumption
WELDS
- Steel
- Stainless Steel
- Carbon Steel
- Alloy Steel
