TIG/MMA (GTAW) INVERTER

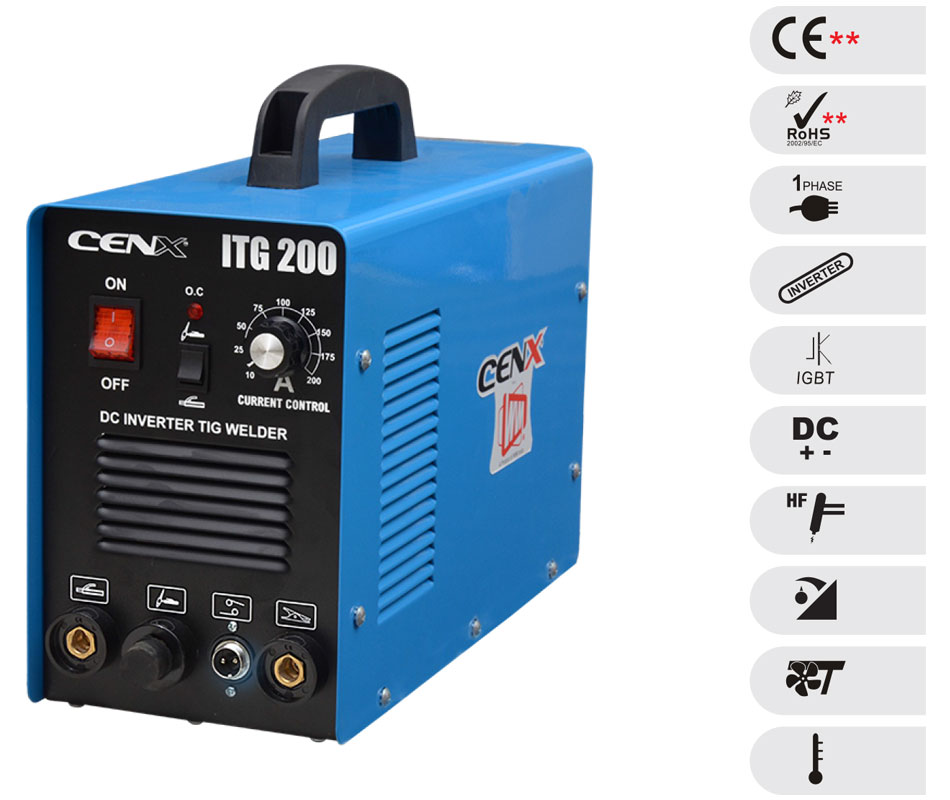

ITG Range Industrial - Model: ITG 200

SPECIFICATION

Technical Specifications  ITG 200
Input Voltage (V)  230 +/- 15%
Frequency (Hz)  50/60
Rated Input Current (KvA)  3.2
Output Voltage (V)  16.4
Output Current Range (A)  10 - 160
No Load Voltage (V) 56
Duty Cycle (%)  60
Efficiency (%) 95
Power Factor  0.9
Insulation Class  H
Protection Class IP21
Weight (Kgs.) 11
Dimension (mm)  460 x 270 x 345
Usable Electrode - MS 6013 - (mm) 3.15
Product Reference  TIG160C

FEATURES

  • Advanced Inverter Technology
  • Inbuilt High Frequency (HF)
  • Compact Size
  • Easy to handle
  • Stable and reliable welding current
  • Low energy consumption

WELDS

  • Steel
  • Stainless Steel
  • Carbon Steel
  • Alloy Steel
