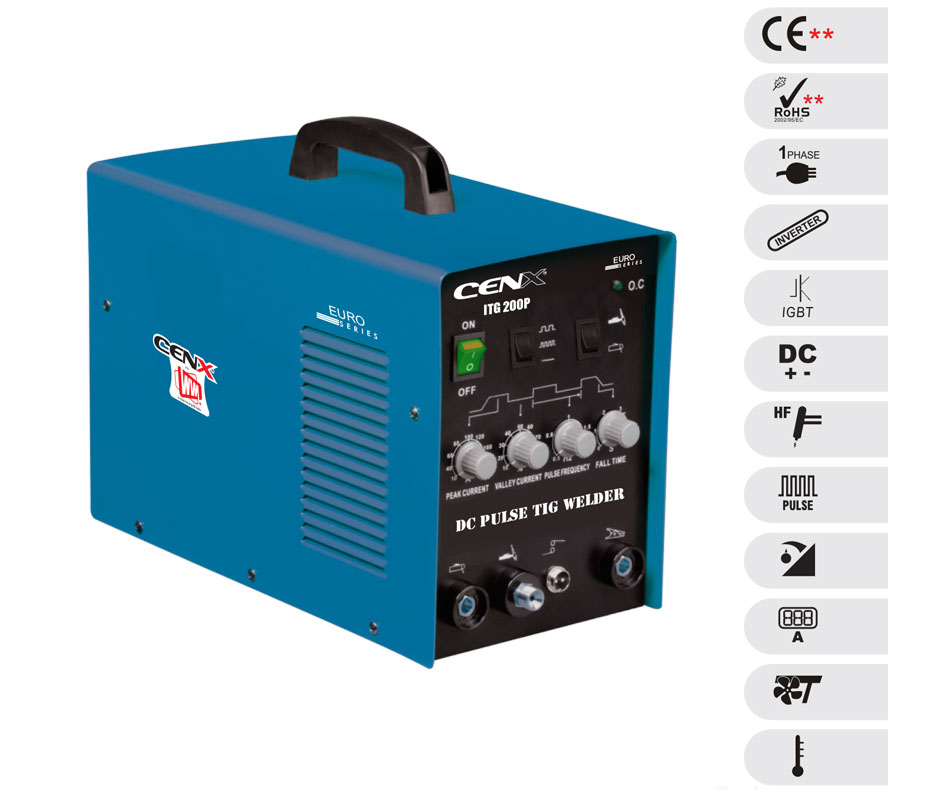

TIG/MMA (GTAW) INVERTER

IPG Pulse Range Industrial - Model: ITG 200P

SPECIFICATION

Technical Specifications  ITG 200P
Input Voltage (V)  230 +/- 15%
Frequency (Hz) 50/60
Rated Input Current (A) 19.8
Output Voltage (V) 18
Output Current Range (A)  20 - 200
No Load Voltage (V)  56
Duty Cycle (%)  60
Efficiency (%)  95
Power Factor  0.9
Insulation Class  H
Protection Class  IP21
Weight (Kgs.)  15
Dimension (mm)  525 x 320 x 390
Usable Electrode - MS 6013 - (mm)  2.4
Product Reference  WSM200

FEATURES

  • Advanced Inverter Technology
  • Inbuilt High Frequency (HF)
  • Compact Size
  • Easy to handle
  • Stable and reliable welding current
  • Low energy consumption
  • Automatic Voltage pulsation current

WELDS

  • Steel
  • Stainless Steel
  • Carbon Steel
  • Alloy Steel
