TIG/MMA (GTAW) INVERTER

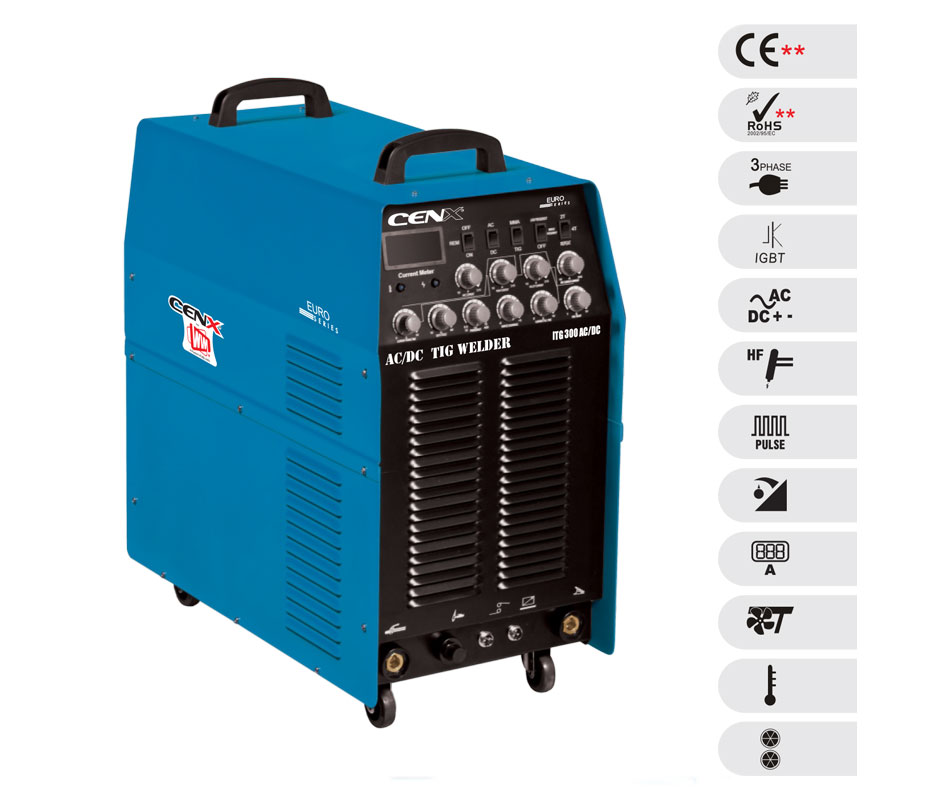

TIG/MMA (GTAW) INVERTERITG AC/DC Range Heavy Industrial - Model: ITG 300 AC/DC
SPECIFICATION
| Technical Specifications | ITG 300 AC/DC |
| Input Voltage (V) | 415 +/- 15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (KvA) | 15 |
| Delay Time (Sec) | 2 - 10' |
| Output Current Range (A) | 10 - 300 |
| No Load Voltage (V) | 60 |
| Duty Cycle (%) | 60 |
| Efficiency (%) | 85 |
| Power Factor | 0.9 |
| Insulation Class | F |
| Protection Class | IP21 |
| Weight (Kgs.) | 38 |
| Dimension (mm) | 630 x 340 x 680 |
| Usable Electrode - MS 6013 - (mm) | 4 |
| Product Reference | WSME315 |
FEATURES
- Advanced Inverter Technology
- Inbuilt High Frequency (HF)
- Excellent Weld Control
- Easy to handle
- Stable and reliable welding current
- Low energy consumption
- Automatic Voltage pulsation current
WELDS
- Steel
- Stainless Steel
- Carbon Steel
- Alloy Steel
- Aluminium
