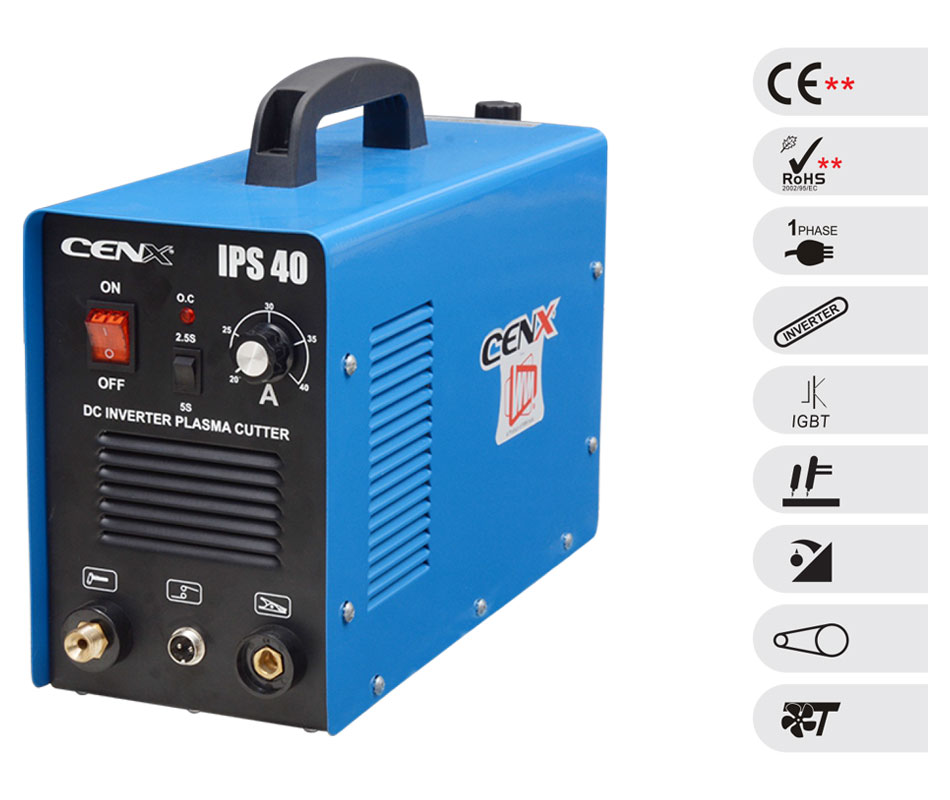

PLASMA CUTTING INVERTER

IPS Series Industrial - Model: IPS 40

SPECIFICATION

Technical Specifications  IPS 40
Input Voltage (V)  230 +/- 15%
Frequency (Hz)  50/60
Rated Input Current (KvA) 6.4
Output Voltage (V)  96
Output Current Range (A)  20 - 40
No Load Voltage (V)  240
Duty Cycle (%)  60
Efficiency (%)  80
Power Factor  0.9
Insulation Class  H
Protection Class  IP21
Weight (Kgs.)  11
Dimension (mm)  480 x 270 x 345
Max. Cutting thickness - MS 6013 - (mm)  12
Product Reference  CUT40

FEATURES

  • High Cutting Capacity
  • Simple operation, smooth cutting surface
  • Touch start cutting
  • Light and Compact

WELDS

  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
  • Copper
