PLASMA CUTTING INVERTER

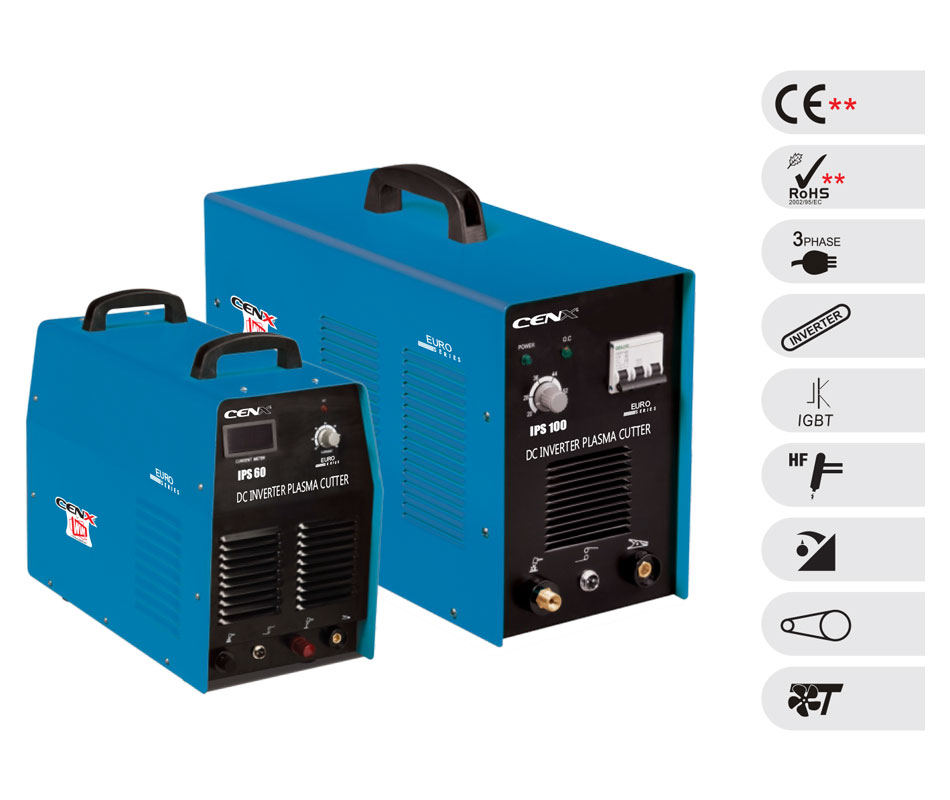

IPS Range Heavy Industrial - Model: IPS 60/100

SPECIFICATION

Technical Specifications  IPS 60  IPS 100
Input Voltage (V)  415 +/- 15%  415 +/- 15%
Frequency (Hz)  50/60  50/60
Rated Input Current (KvA)  7.9 15
Output Voltage (V) 104 120
Output Current Range (A) 20 - 60 20 - 100
No Load Voltage (V)  260 260
Duty Cycle (%) 60 60
Efficiency (%) 80 80
Power Factor  0.9 0.9
Insulation Class  H  H
Protection Class  IP21  IP21
Weight (Kgs.)  19 27
Dimension (mm)  585 x 320 x 420  635 x 365 x 505
Max. Cutting thickness - MS 6013 - (mm)  18 30
Product Reference  CUT60  CUT100

FEATURES

  • High Cutting Capacity
  • Simple operation, smooth cutting surface.
  • HF untouched Arc start cutting
  • Light and Compact

WELDS

  • Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
  • Copper
