MIG/MAG/MMA (GMAW) INVERTER

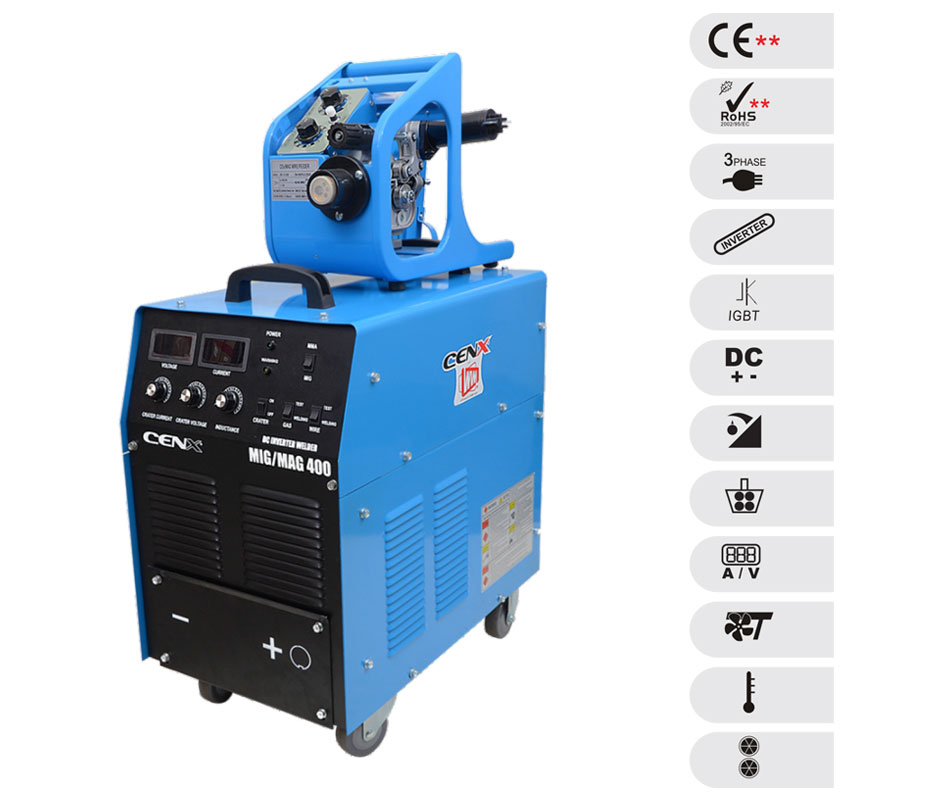

MIG/MAG/MMA (GMAW) INVERTERMIG/MAG Range Heavy Industrial - Model: MIG 400/500
SPECIFICATION
| Techncial Specifications | MIG 400 | MIG 500 |
| Input Voltage (V) | 415 +/- 15% | 415 +/- 15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Rated Input Current (A) | 44 | 46 |
| Rated Output Voltage Voltage (V) | 31.5 | 35 |
| Output Current Range (A) | 60 -350 | 80 - 500 |
| Duty Cycle (%) | 60 | 60 |
| Efficiency (%) | 85 | 85 |
| Power Factor | 0.7-0.9 | 0.7-0.9 |
| Insulation Class | H | H |
| Protection Class | IP21 | IP21 |
| Weight (Kgs.) | 30 | 35 |
| Dimension (mm) | 690 X 430 X 1010 | 690 X 430 X 1010 |
| Usable Electrode - MS 6013 - (mm) | 2.5 to 4.0 | 2.5 to 5.0 |
| Product Reference | NB350S | NB500S |
FEATURES
- Suitable for thin sheet welding
- Easy to operate and maintain
- Suitable for continuous operation
- High Speed Welding
- Less spatter and controlled welding
- External Wire Feeder
- Recommended for Automation
WELDS
- Steel
- Stainless Steel
- Aluminium
