MIG/MAG/MMA (GMAW) INVERTER

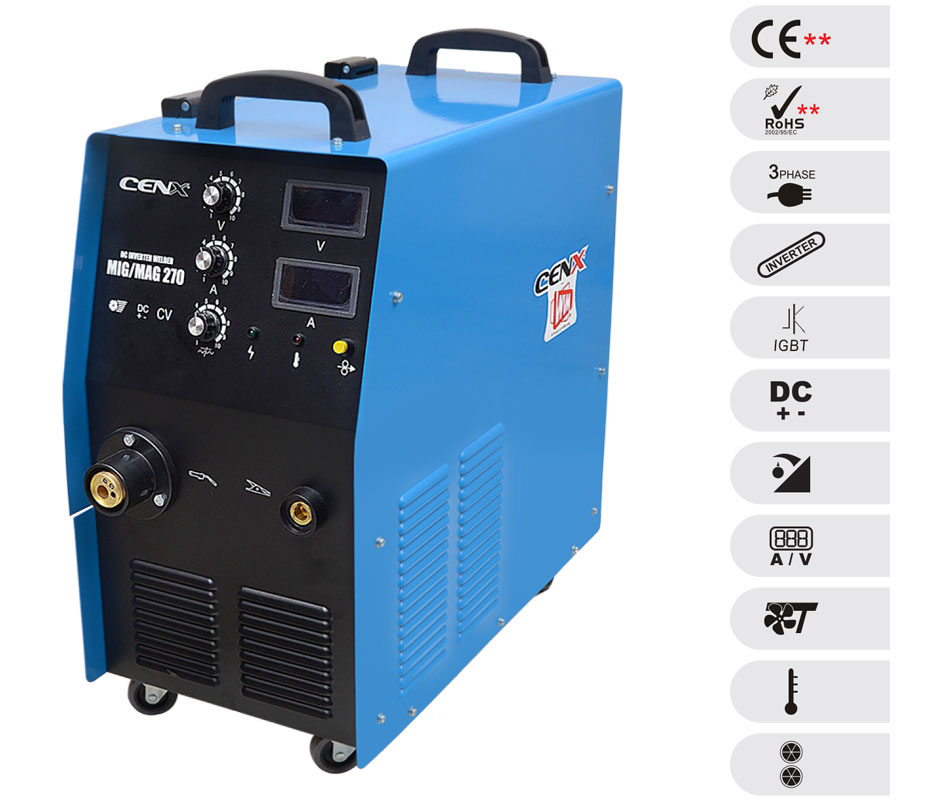

MIG/MAG Range Industrial - Model: MIG 270

SPECIFICATION

Techncial Specifications MIG 270
Input Voltage (V) 415 +/- 15%
Frequency (Hz) 50/60
Rated Input Current (A) 24
Rated Output Voltage (V) 26.5
Output Current Range (A) 50 -250
Duty Cycle (%) 60
Efficiency (%) 85
Power Factor 0.7-0.9
Insulation Class H
Protection Class IP21
Weight (Kgs.) 28
Dimension (mm) 860 x 450 x 685
Usable Electrode - MS 6013 - (mm) 2.5 to 3.15
Product Reference MIG 250i

FEATURES

  • Suitable for thin sheet welding
  • Easy to operate and maintain
  • Suitable for continuous operation
  • High Speed Welding
  • Less spatter and controlled welding
  • Inbuilt closed Wire Feeder
  • Recommended for Automation

WELDS

  • Steel
  • Stainless Steel
  • Aluminium
