MIG/MAG (GMAW) INVERTER

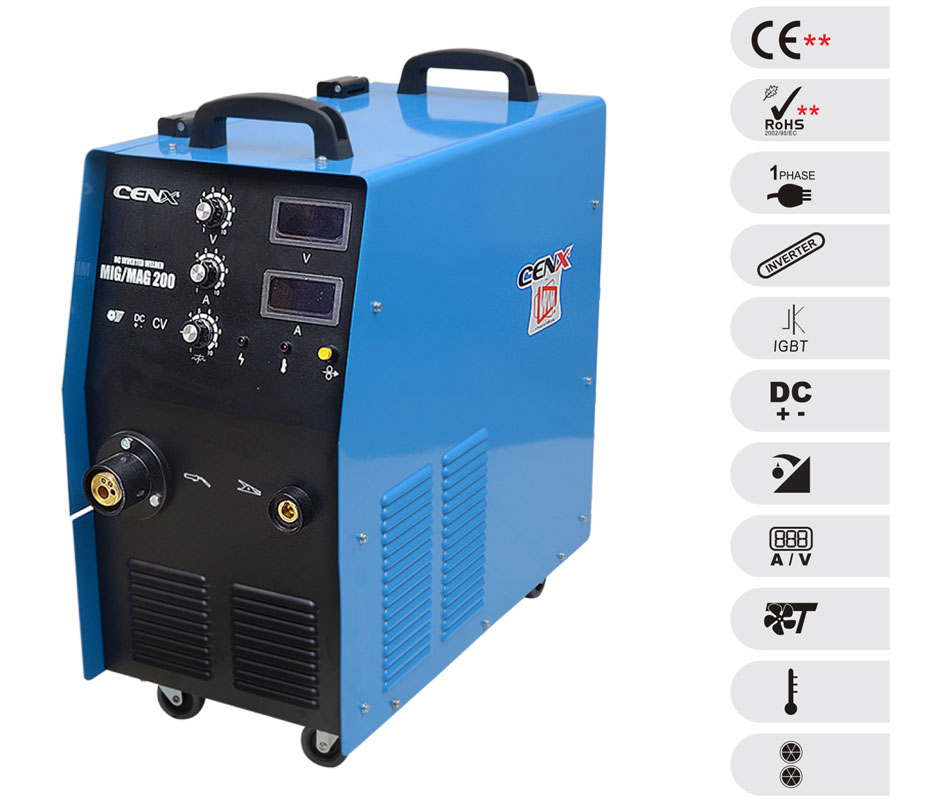

MIG/MAG (GMAW) INVERTERMIG/MAG Range Industrial - Model: MIG 200
SPECIFICATION
| Techncial Specifications | MIG 200 |
| Input Voltage (V) | 230 +/- 15% |
| Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 32 |
| Rated Output Voltage (V) | 24 |
| Output Current Range (A) | 50 -200 |
| Duty Cycle (%) | 60 |
| Efficiency (%) | 85 |
| Power Factor | 0.7-0.9 |
| Insulation Class | H |
| Protection Class | IP21 |
| Weight (Kgs.) | 27 |
| Dimension (mm) | 860 x 450 x 685 |
| Usable Electrode - MS 6013 - (mm) | NA |
| Product Reference MIG 200i |
FEATURES
- Suitable for thin sheet welding
- Easy to operate and maintain
- Suitable for continuous operation
- High Speed Welding
- Less spatter and controlled welding
- Inbuilt closed Wire Feeder
- Recommended for Automation
WELDS
- Steel
- Stainless Steel
- Aluminium
