ARC (MMA) TRANSFORMERS

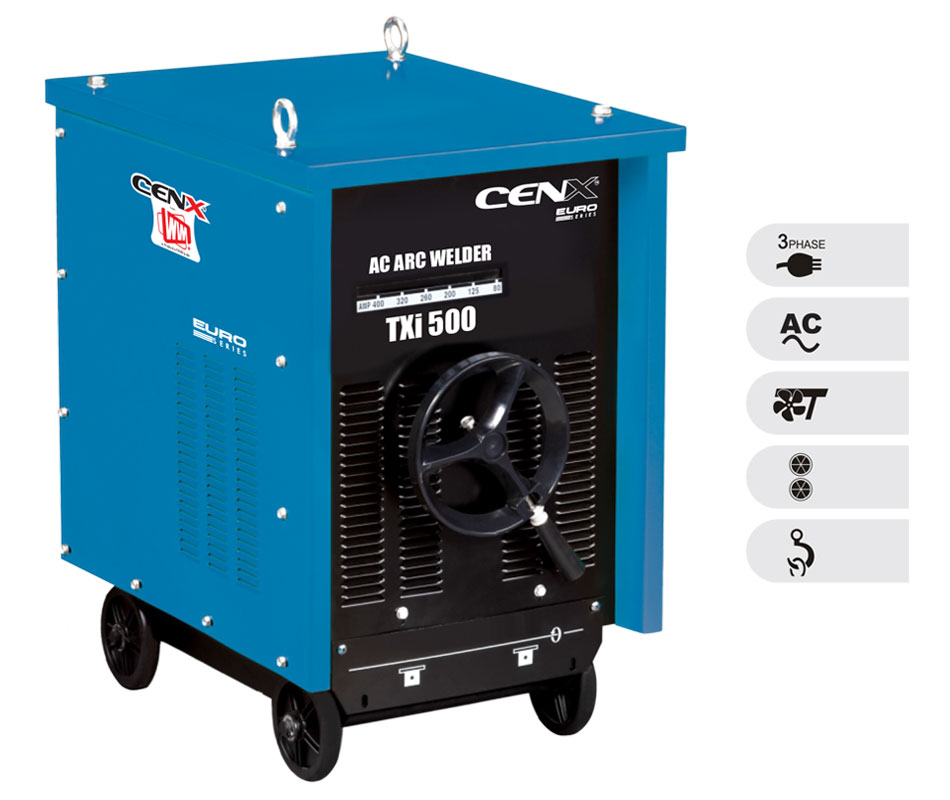

TX Range Professional - Model: TXi 200/300/400/500/600

SPECIFICATION

Technical Specifications TXi 200 TXi300 TXi 400 TXi 500 TXi 600
Input Voltage (V) 220/380 - 1 Phase 220/380 - 1 Phase 220/380 - 1 Phase 220/380 - 1 Phase 220/380 - 1 Phase
Frequency (Hz) 50/60 50/60 50/60 50/60 50/60
No Load Voltage (V) 70 70 70 70 70
Output Current Range (A) 50 - 250 60 - 300 80 - 400 100 - 500 125 - 600
Rated Input Capacity (KvA) 16.5 24 33.4 41.8 52.6
Duty Cycle (%) 35% 35% 35% 35% 35%
Insulation Class F F F F F
Protection Class IP21 IP21 IP21 IP21 IP21
Weight (Kgs.) 50 65 74 82 88
Dimension (mm) 560x400x620 640x460x700 640x460x700 640x460x700 640x460x700
Usable Electrode - MS 6013 - (mm) 1.6 to 3.2 2.5 to 4.0 2.5 to 5.0 2.5 to 6.0 3.2 to 8.0
Product Reference BX1-250 BX1-315 BX1-400 BX1-500 BX1-630
Product Code JB891100 JB891101 JB891102 JB891103 JB891104

FEATURES

  • Moving core type
  • Forced air cooling mechanism
  • Suitable for welding ferrous metal workpiece with general AC electrode
  • Stable arc, less spatter and deep penetration ensures welding quality
  • Simple construction
  • High efficiency
  • Easy to operate and maintain
  • Single Phase Models available on request

WELDS

  • Mild Steel
  • Stainless Steel
  • Cast Iron
