ARC (MMA) RECTIFIERS

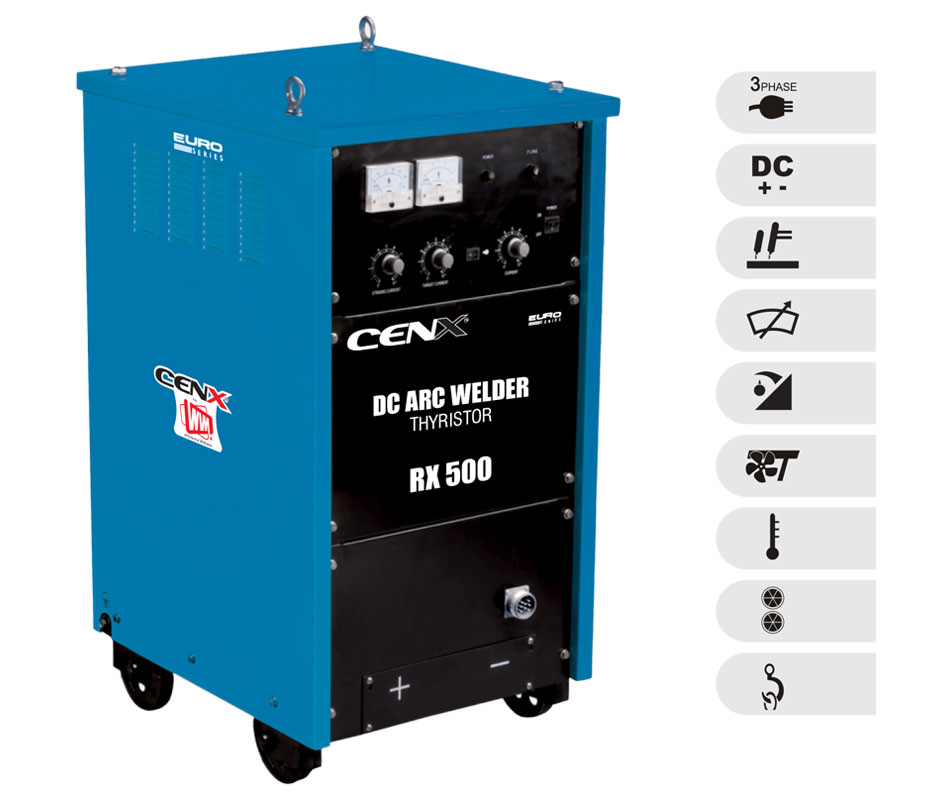

RX Range Heavy Industrial - Model: RX 400/500/600

SPECIFICATION

Technical Specifications	RX 400	RX 500	RX 600
Input Voltage (V)	415 +/- 15%	415 +/- 15%	415 +/- 15%
Frequency (Hz)	50/60	50/60	50/60
Rated Input Current (A)	36	45	70
No Load Voltage (V)	75	75	75
Output Current Range (A)	50 - 400	50 - 500	80 -600
Duty Cycle (%)	60	60	60
Efficiency (%)	85	85	85
Power Factor	0.7-0.9	0.7-0.9	0.7-0.9
Insulation Class	F	F	F
Protection Class	IP21	IP21	IP21
Weight (Kgs.)	183	190	230
Dimension (mm)	670 X 530 X 1050	670 X 530 X 1050	670 X 530 X 1050
Usable Electrode - MS - (mm)	1.6-6	1.6-8	1.6-8
Product Reference	ZX5-400	ZX5-500	ZX5-600
Product Code	JB891083	JB891084	JB891085

FEATURES

Reliable Technology
Stable arc and less spatter
Excellent arc control
Deep Penetration and excellent strength
Heavy Duty & Rugged
Continuous rating
Welds all basic and cellulose electrodes

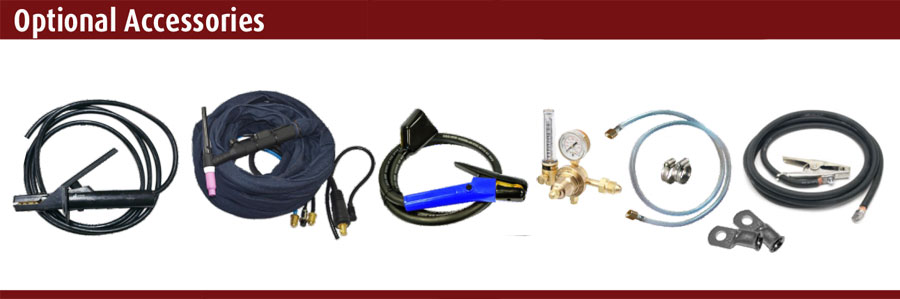

Optional: Remote Control
Suitable for Gouging (only RX 600)

WELDS

Mild Steel
Stainless Steel
Cast Iron
Aluminium
