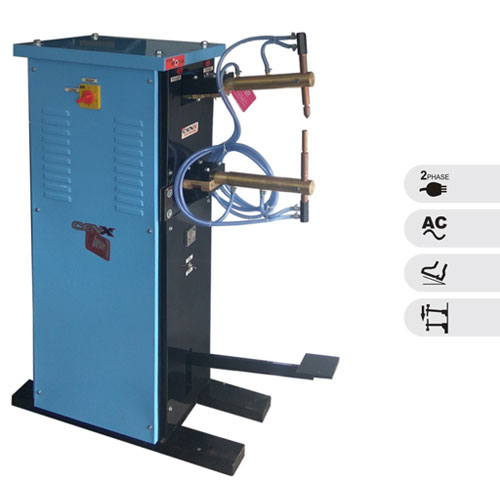

SPOT WELDERS

Techncial Specifications	CSW4	CSW10	CENX15	CENX25
Input Voltage (V)	230 +/-15%	415 - 2P	415 - 2P	415 - 2P
Max. Welding Capacity (mm) - MS Rod	1 + 1	2.5 + 2.5	6 + 6	10 + 10
Max, Welding Capacity (mm) - MS Sheet	0.6 + 0.6	1.5 + 1.5	2.5 + 2.5	3 + 3
Rated Duty Cycle (%)	7	7	7	7
Throat Depth (mm)	250	400	300	400
Electrode Stroke (mm)	40	40	40	40
Insulation Class	H	H	H	H
Protection Class	IP 21S	IP 21S	IP 21S	IP 21S
